Data Collection

Partners

Pacific Islands Fisheries Science Center

Southwest Fisheries Science Center

Oregon State University, CIMERS

The Cooperative Institute for Marine and Ecosystem Resources Studies (CIMERS) and Marine Mammal Institute (MMI) at Oregon State University are world leaders in marine mammal and bioacoustics research.

They were involved in some of the earliest development to use gliders for marine mammal passive acoustic research and have conducted glider missions in many ocean basins for the U.S. Navy, BOEM, and NOAA.

Participants: Selene Fregosi, Dave Mellinger

Cornell University

K. Lisa Yang Center for Conservation Bioacoustics provided Hefring OceanScout gliders.

Participants: Maria Vasilkin

Teledyne Webb Research

Teledyne Webb Research, in conjunction with JASCO Applied Sciences, provide a Slocum glider equipped with a JASCO OceanObserver acoustic sensor.

Participants:Karl Boettger, Shea Quinn, Cordie Goodrich

Alseamar

Alseamar provided an Alseamar SeaExplorer glider outfitted with an Auris acoustic sensor.

Participants: Camille Pierini, Laurent Beguery

JASCO Applied Science

JASCO Applied Sciences, in conjunction with Teledyne Webb Research, provided a JASCO OceanObserver acoustic sensor on a Slocum.

University of Hawaii Marine Center

Special thanks to UH Marine Center for providing charter vessel support

Trackline Planning

Stay Tuned!

Communications

PIFSC/SWFSC communication teams facilitated the creating and amplification of a series of integrated outreach/communications events that highlight how we are assessing capabilities of various passive acoustic glider systems to inform a transition to operations. These efforts were outlined in a Communications and Outreach plan developed by PIFSC (Stefanie Gutierrez) and SWFSC (Sarah Mesnick).

Communications included:

February 5, 2026, NOAA Featured Web Story: NOAA Fisheries Launches Underwater Glider Challenge in Hawai‘ihttps://www.fisheries.noaa.gov/feature-story/noaa-fisheries-launches-underwater-glider-challenge-hawaii (Stefanie Gutierrez) February 5, 2026, Sound Bytes Blog: Meet the Pilots of the Underwater Glider Challenge (Kourtney Burger)

March 28, 2026, Sound Bytes Blog: XXXX (Selene Fregosi)

Data Offload

Data from the Hefring Ocean Scout and the Alseamar SeaExplorer gliders were offloaded at the end of the Glider Rodeo prior to shipping the gliders.

At the end of the Glider Rodeo, the Seagliders started a mission with additional tracklines associated with the WHICEAS survey, and data was downloaded when these gliders returned from their second mission.

Data download from the Slocum requires access to the internal acoustic module and was conducted after the glider returned to its home port (La Jolla, CA).

Field Reports

Brief summaries were provided for the SWFSC Weekly Reports during the Glider Rodeo fieldwork (Feb 2, Feb 9, Feb17, in addition to NOAA Webstory and Blogs).

Pilot Logs: can be found in the 📂supplement/pilotLogs/ folder in the GliderRodeo github repository.

Each glider platform provides a different approach to real-time summaries:

SeaGlider

Stay Tuned!

JASCO OceanObserver on Slocum Glider

Pre-defined algorithims provided an opportunity for real-time detection of dolphins, minke whales, and humpback whales.

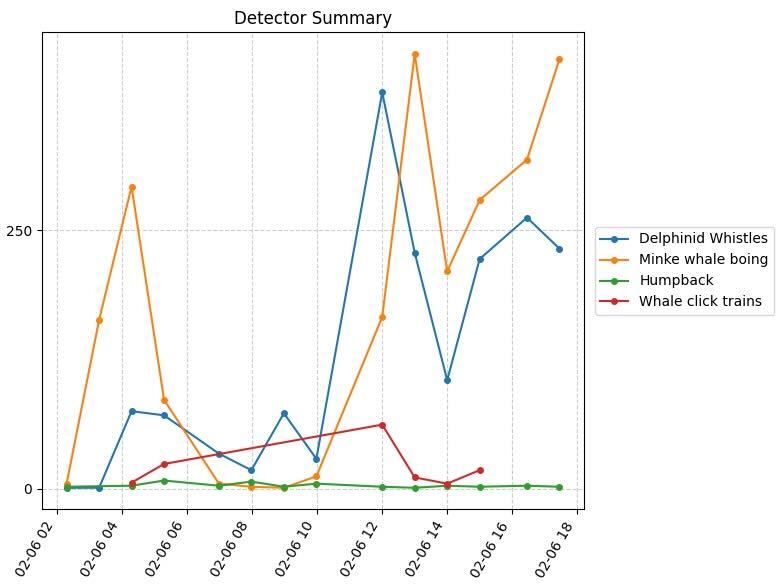

Real time detections provided by Alseamar SeaExplorer during a window of several days

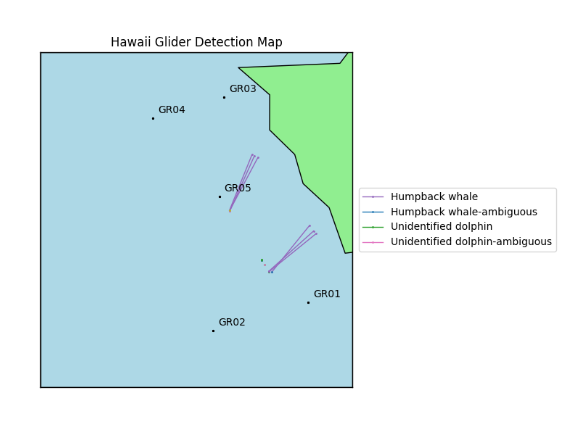

Near real-time map of detections from a selection of several days from the JASCO OceanObserver (on a Slocum glider).

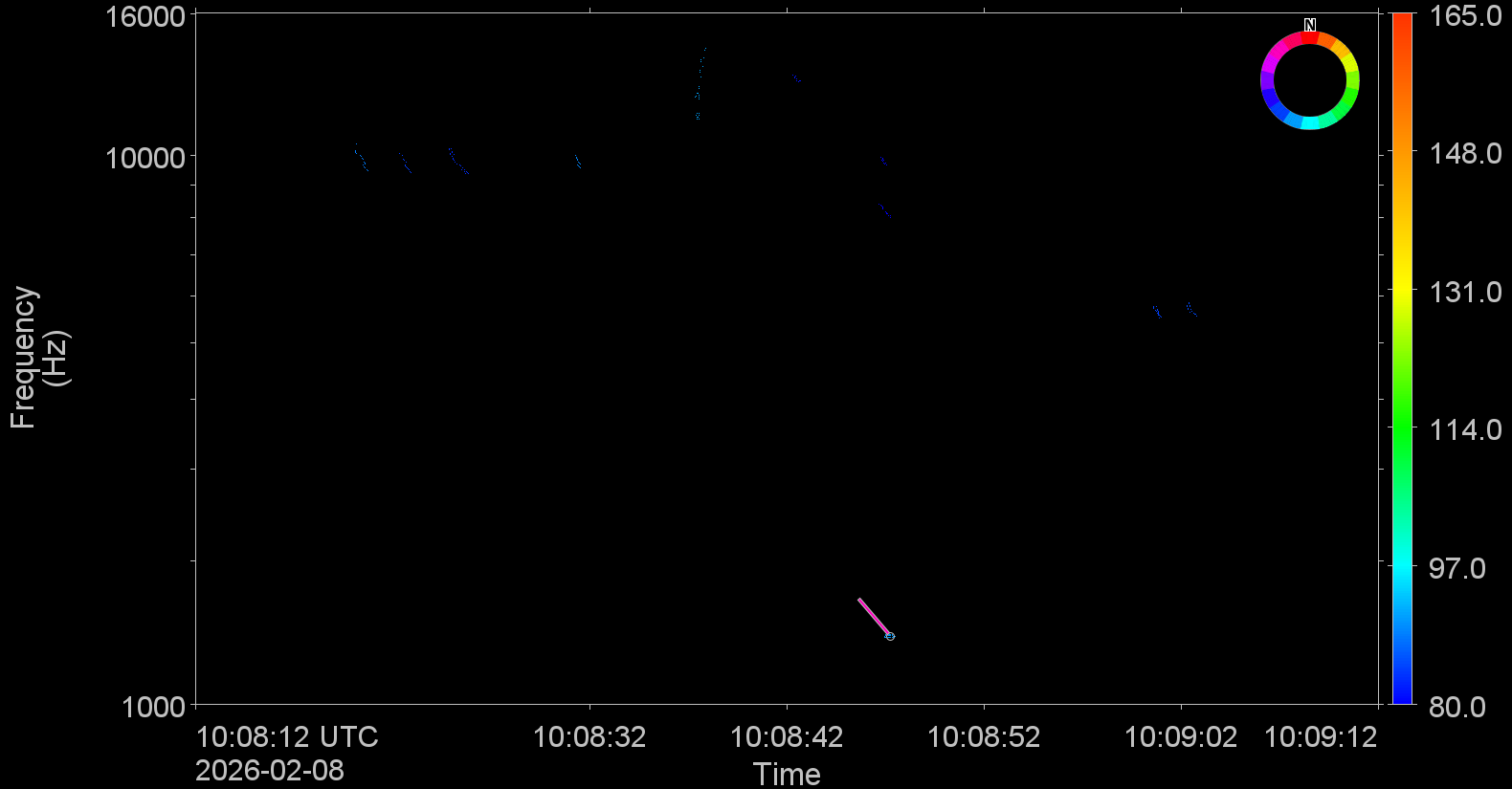

Near real-time detection of dolphin whistles identified in a low resolution spectrogram contour plot.

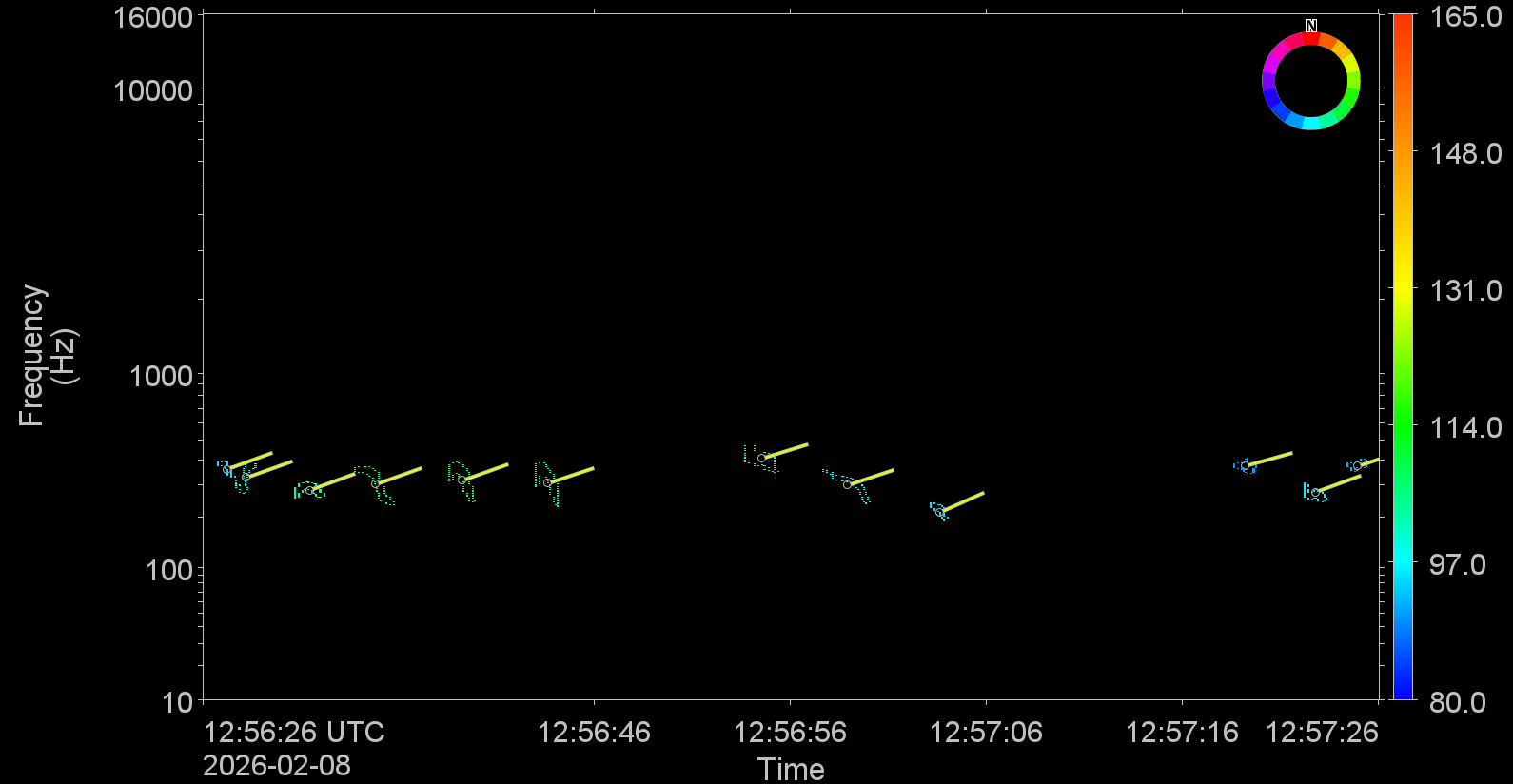

Near real-time detection of humpback whale song identified in a low resolution spectrogram contour plot.

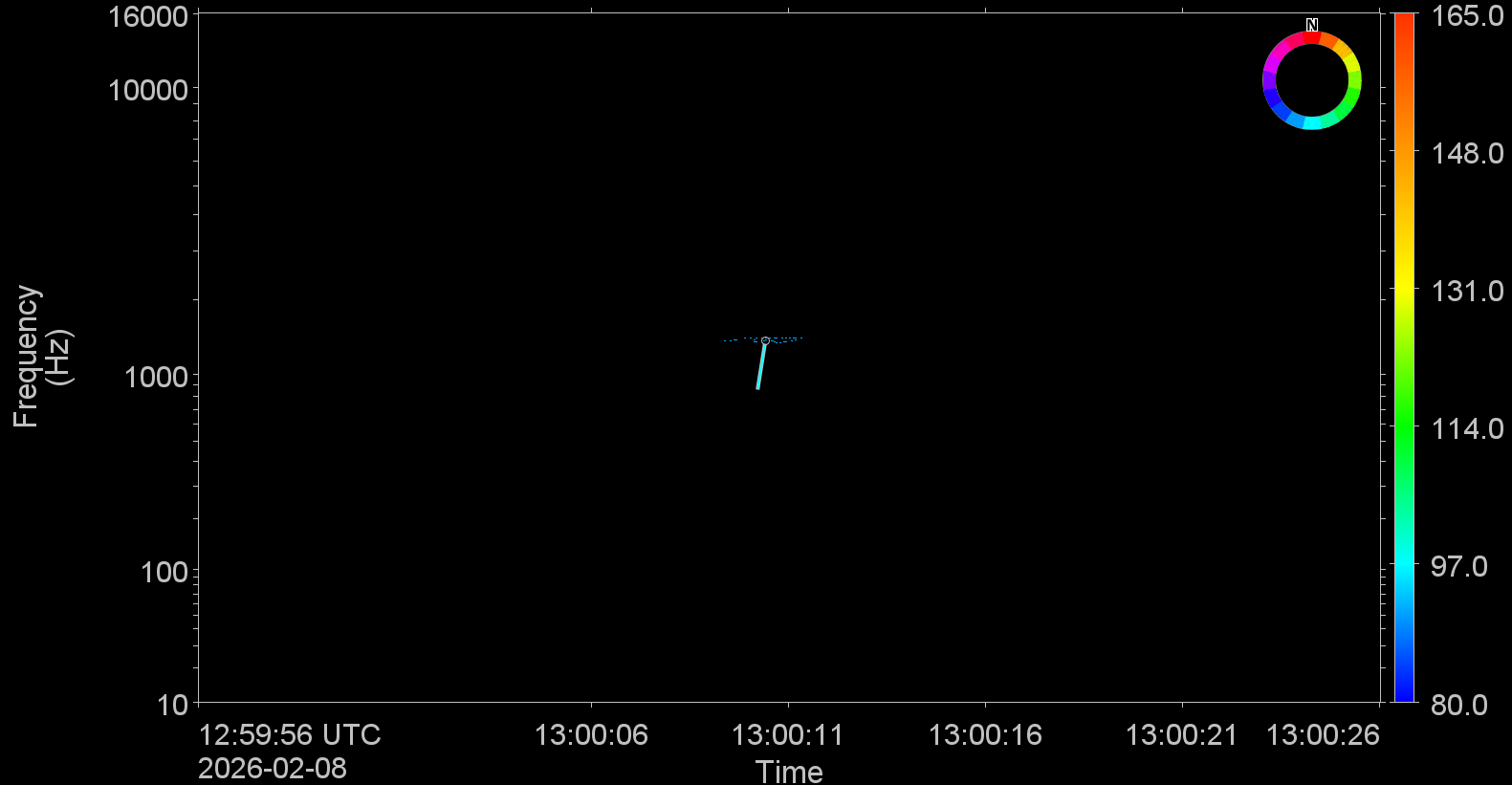

Near real-time detection of minke whale boing identified in a low resolution spectrogram contour plot.

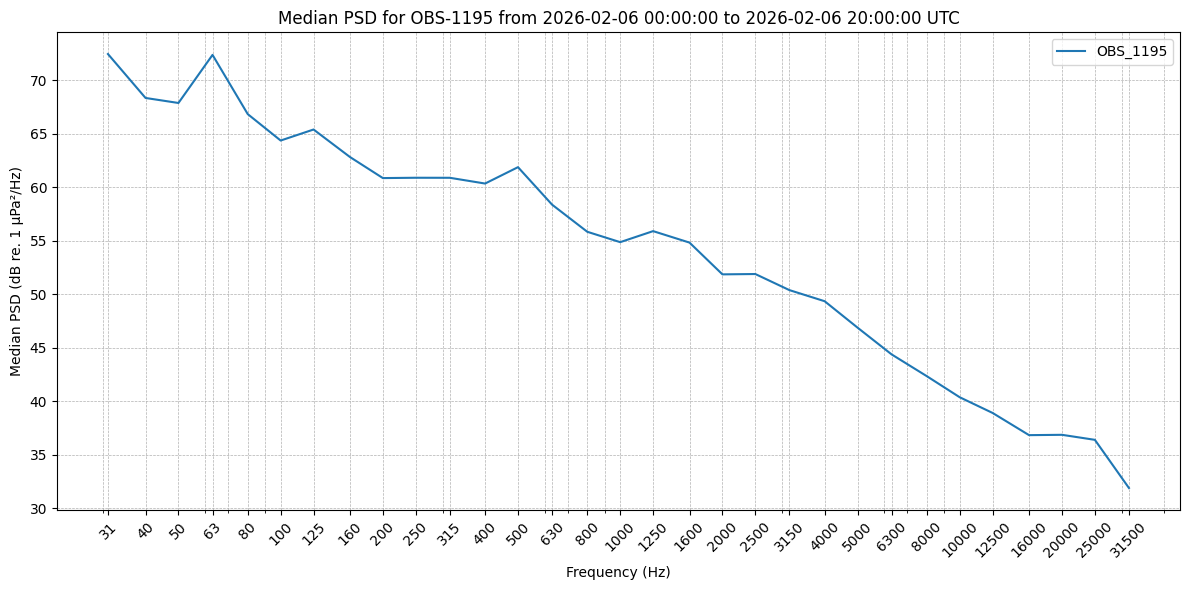

Power spectral density (PSD) measurements provided by near real-time updates from the JASCO OceanObserver (on a Slocum glider).

Alseamar Ocean Explorer

Pre-defined algorithms provided an opportunity for real-time detection of dolphins, humpback whales, sperm whales, and fin whales. In addition to detections, low resolution spectrograms could be automatically sent from the glider in near real-time.

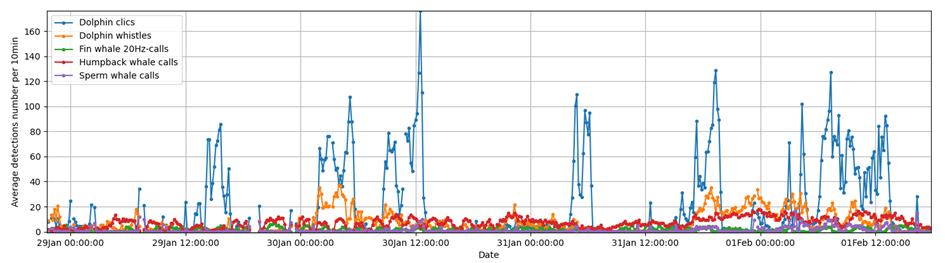

Real time detections provided by Alseamar SeaExplorer during a window of several days.

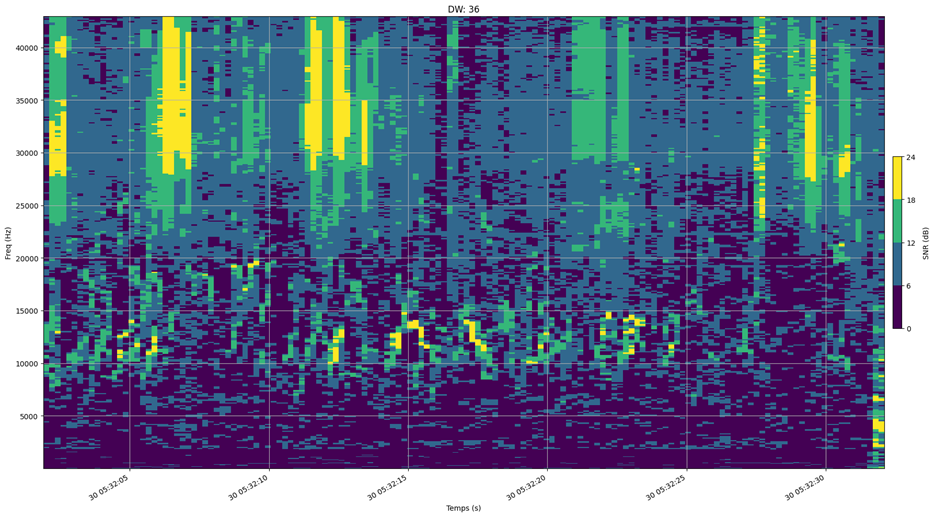

Low-resolution spectrogram of dolphin acoustic detections from the Alseamar SeaExplorer.

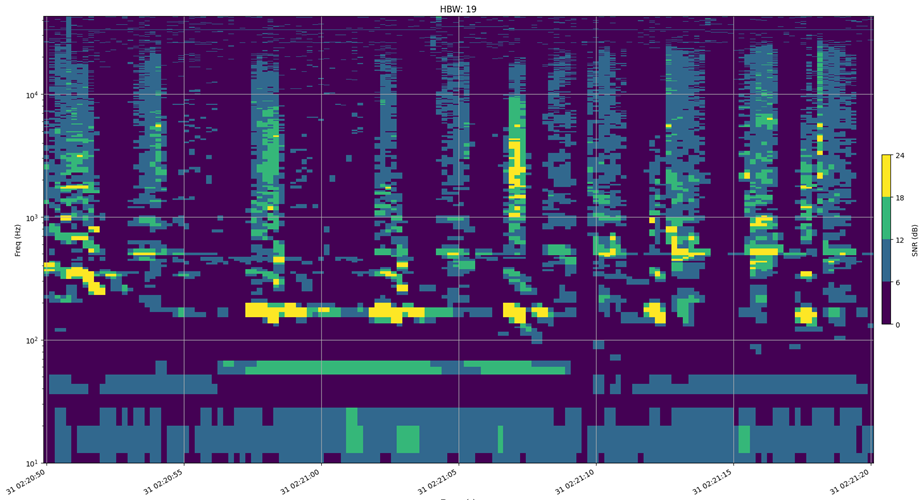

Low-resolution spectrogram of humpback whale acoustic detections from the Alseamar SeaExplorer.

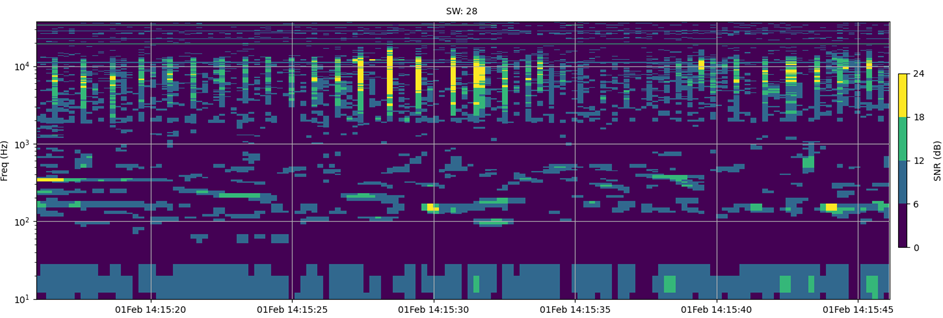

Low-resolution spectrogram of sperm whale acoustic detections from the Alseamar SeaExplorer.

The Alseamar SeaExplorer also provided near real-time plots of ambient noise measurements. Ambient noise measurements from early in the sea trial showed very low levels of low frequency ambient noise (near the theoretical minimum). These visualizations also provided information on detection of ship noise (and ship crossings), humpback whale chorus, and low frequency flow noise during fast (glider) travel. An increase in ambient noise associated with increasing sea states could be detected in the longer term LTSA shown by dive sequence.

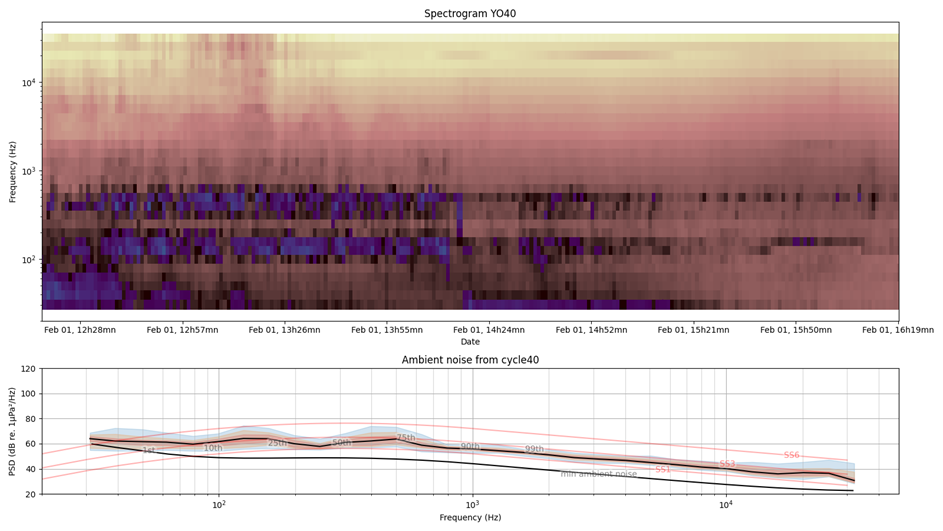

Low resolution long term spectral average (LTSA) based on power spectral density (PSD) measurements provided by near real-time updates from the Alseamar SeaExplorer.

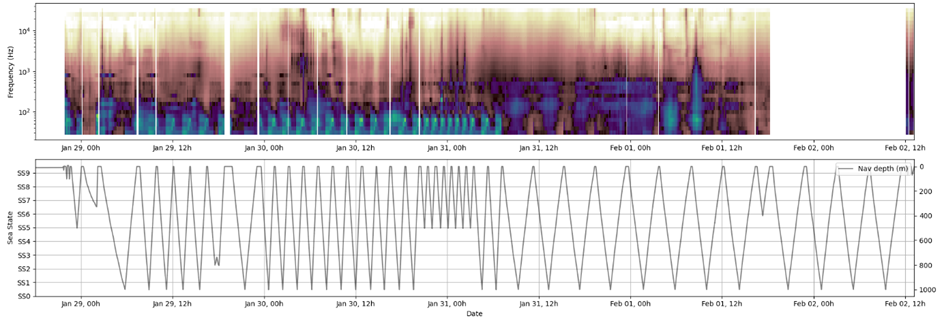

Low resolution long term spectral average (LTSA) by dive (yo) provided by near real-time updates from the Alseamar SeaExplorer.

Hefring OceanScout

Stay Tuned!
